Design and Construction Differences Among Axial Fans, Centrifugal Fans, and Blowers

Design and Construction Differences Among Axial Fans, Centrifugal Fans, and Blowers

Understanding the design and construction differences between axial fans, centrifugal fans, and blowers is essential for selecting the right fan for specific applications. Each type of fan has unique structural characteristics that influence its performance, efficiency, and suitability for various environments. This article aims to demystify these differences to help readers make informed decisions.

Axial Fans: Simplified Structure for Direct Airflow

Design Features:

Axial fans are characterized by their straightforward design, consisting of a propeller-shaped set of blades encased in a cylindrical housing or a ring. The blades are directly attached to a motor, which is positioned in line with the airflow direction.

Construction Impact:

• Performance: Axial fans are designed to move a large volume of air at a low pressure. They are highly efficient in scenarios where minimal resistance to airflow is present.
• Efficiency: These fans typically operate with a higher efficiency in open environments due to their ability to push air linearly.
• Suitability: Ideal for general ventilation, cooling, and exhaust applications in residential, commercial, and light industrial settings. They are less suitable for moving air through long ducts or against high resistance.

Centrifugal Fans: Complex Builds for High-Pressure Air

Design Features:

Centrifugal fans feature a more complex design than axial fans. They consist of a wheel or impeller and an external rotor motor. The impeller has blades that can be forward-curved, backward-curved, or radial, depending on the specific application needs.

Construction Impact:

• Performance: These fans generate a higher pressure increase by accelerating air radially. This capability allows them to overcome greater system resistances.
• Efficiency: Centrifugal fans are generally more efficient in confined spaces where higher pressure is required. The efficiency varies with blade design—backward-curved blades often provide the best energy efficiency.
• Suitability: Perfect for HVAC systems, industrial processes, and air pollution control systems where air needs to be moved through filters.

Blowers: Robust and Versatile for Industrial Demand

Design Features:

Blowers, often considered a subtype of centrifugal fans, are built to handle large volumes of air at high pressures. They are constructed with a rugged housing that can manage the increased stress from moving dense or particulate-laden air. Blowers typically have larger, more powerful motors and reinforced impeller designs.

Construction Impact:

• Performance: Capable of achieving higher pressure differentials, making them suitable for challenging industrial applications requiring substantial air movement.
• Efficiency: While blowers consume more power, their design maximizes airflow and pressure, making them efficient for their intended heavy-duty applications.
• Suitability: Ideal for systems needing high capacity like pneumatic conveying, waste-water treatment facilities, and certain chemical processing applications.

Conclusion: Selecting the Right Fan

The choice between axial fans, centrifugal fans, and blowers largely depends on the specific requirements of the application, including the desired airflow, pressure needs, and environmental conditions. Understanding the design and construction differences aids in predicting how each fan will perform in a given setting:

• For large volumes of air at low pressure: Choose axial fans.
• For moderate to high air pressure and efficient duct passage: Opt for centrifugal fans.
• For high volume and high pressure in industrial settings: Blowers are the best choice.

At SHYUAN YA, a leader with over 40 years of expertise in the industrial cooling fan industry, we understand the nuances of airflow technologies. Our diverse range of axial fans, centrifugal fans, and blowers are designed to meet the exacting needs of any application, supported by a robust R&D team and high-quality manufacturing processes. Whether you're exploring options for ventilating equipment or seeking efficient cooling solutions, we invite you to view our products below. Let SHYUAN YA help enhance your operations with fans engineered for optimal performance and reliability.

Related Product：

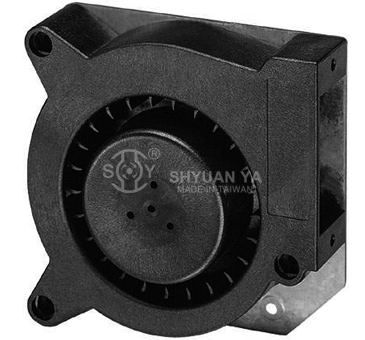

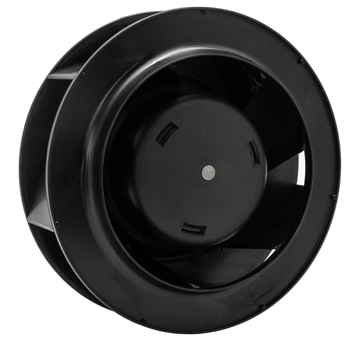

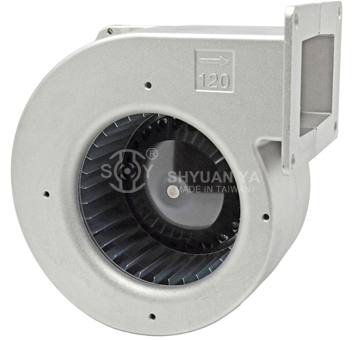

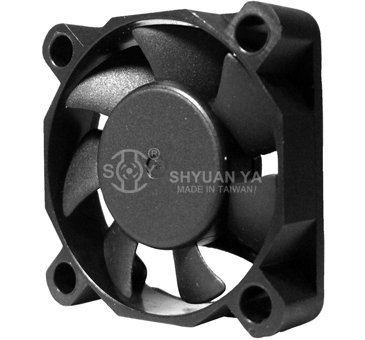

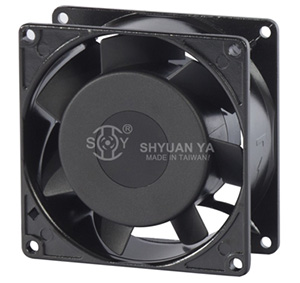

DC Centrifugal Fans	AC Axial Fans	DC Axial Fans	AC Centrifugal Fans	Centrifugal Blowers
