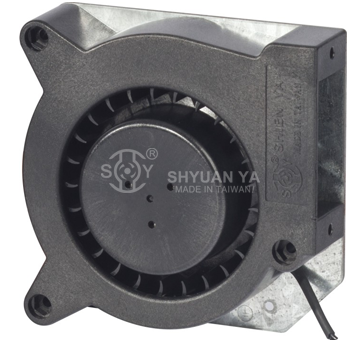

AC Centrifugal Fans
BA12C37T / 121x37mm
| Air Flow | 22 ~ 23 CFM |
|---|---|
| Static Pressure | 0.42 ~ 0.62 inch-H2O |
| Noise | 53 ~ 54 dB(A) |
| Bearing | Ball or Sleeve |
| Safety | Impedance Protected |
| Weight | 625g |
Why Choose Us
Thermally Protection with Better Insulation
One body injected insulation case provides better insulation between coil and silicon steel. Thermal protector prevents motor overheating.
Electricity Saving
The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design.
Longer products lifetime
The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.
Stronger Impeller Structure
One body injected impeller has stronger structure and better balance compared with impeller mounted with a metal plate.Product Video
Specification
- Item Code
- BA12C37T
- Housing
- Spiral Housing of Fiberglass-Reinforced Polycarbonate Housing Base of Galvanized Steel Plate
- Impeller
- Thermoplastic PBT, UL94V-0
- Motor
- Shaded-Pole Motor
- Termination
- Lead Wire
- Voltage Range
- 85VAC to 125VAC for 115V Type
185VAC to 245VAC for 230V Type
- Insulation
- Class “B” or “F”
- Operating Temperature
- -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Item Code: BA1V12C37TBL-2 | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
|---|---|---|---|---|---|---|---|---|---|
| 115V | 50/60 | 0.27/0.24 | 21/19 | 2500/2500 | 22/23 | 0.62/0.65 | 0.42/0.62 | 53/54 | NONE |
| Item Code: BA2V12C37TBL-2 | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
| 230V | 50/60 | 0.14/0.12 | 21/20 | 2500/2500 | 22/23 | 0.62/0.65 | 0.42/0.62 | 53/54 | NONE |
Outline Drawing
.png)
Charateristic Curve
Related Products
Manufacturing Process
Step 1. Motor Winding
Winding coils to fan motors
Step 2. Motor Testing
Testing ohm value of coils.
Step 3. Motor Connection
Connecting lead wires to fan motors
Step 4. Hi-POT & Impulse Testing
Testing insulation between coils and bottom cases
Step 5. Motor Mounting
Mounting fan motors to bottom cases
Step 6. Dynamic Balancing
Balancing impellers
Step 7. Impeller Assembling
Assembling impellers to fan motor
Step 8. Pre-Delivery Inspection
Testing vibration、current、wattage of fans
Step 9. Pre-Delivery Hi-POT Testing
Testing insulation between fan motors and bottom cases.
Step 10. Packing
Company Overview
Professional & Customized Service
SHYUAN YA Group was founded in 1982 with more than 40 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers.
Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.
Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.
1982
Set Up
40 years experience
Manufacturing experience
Up to 85%
Self-Manufacturing
Inspection Equipments
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
100% products inspections
High standard
Down to 10.0 dBA
Background noise
Up to 1,300 CFM
Measurement range
Production Equipments
Short Production Time & Prompt Delivery
SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines.
Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.
Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.
Over two million US dollars
Investment funds
16 lines
Assembling lines
4~6 weeks
Mass Production
![](/images/advantage/inspection-large-5.jpg"){kind=link}
![](/images/advantage/production-large-4.jpg"){kind=link}
Certification
Certification
- ShyuanYa have met the worldwide standards and have qualified by ISO 9001:2015 and CQC quality system.
- All our products are approved by UL (E184769)/ CUL/ CE , as well as in compliance with RoHS requirement.
- CCC Certification
- CE Certification
- ISO 9001 2015 Certification
- UL Certification
Packing & Delivery
STEP 1
Packing Products
STEP 2
Packing Products
STEP 3
Loading Area
STEP 4
Stuffing
STEP 5
Stuffing
STEP 6
Stuffing
Trade Shows
- MCE
- Build4Asia
- HVACR ASIA
- KE SHOW
- TAITRONICS
Video
SHYUAN YA has more than 40 years experiences of producing AC Centrifugal Fans 121x37mm with a AC Centrifugal Fans 121x37mm factory in Taiwan. We own experienced artisans in order to deliveries top quality AC Centrifugal Fans 121x37mm to our customers. Welcome to contact us for AC Centrifugal Fans 121x37mm, AC Axial Fans, DC Axial Fans, Centrifugal Fans, Centrifugal Blowers.
