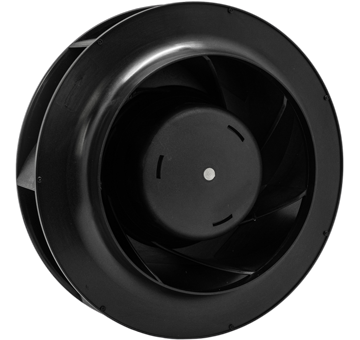

DC Centrifugal Fans
BD220-71T / 220x71mm
| Air Flow | 610 CFM |
|---|---|
| Static Pressure | 2.56 Inch-H2O |
| Noise | 78dB(A) |
| Bearing | Dual Ball Bearing, Permanently Lubricated |
| Safety | Reverse polarity and Lock Protection |
| Weight | 1150g |
| Technical Features | Control Input 0-10 VDC / PWM, Tach Output |
Specification
- Item Code
- BD220-71T
- Impeller
- Plastic PA (Polyamide Glass-fiber Reinforced)
- Motor
- DC Brushless Fan Motor
- Termination
- Lead Wire
- Voltage Range
- 16 ~ 28 VDC for 24V Type
36~ 57 VDC for 48V Type
- Insulation
- Class “B”
- Operating Temperature
- -25°C ~ +60°C
| Item Code: BD24V22071T-B7-1BA | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
|---|---|---|---|---|---|---|---|---|---|
| 24 VDC | NONE | 4 | 96 | 3200 ± 10% | 610 | 17.27 | 2.56 | 78 | NONE |
| Item Code: BD48V22071T-B7-1BA | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
| 48 VDC | NONE | 2.05 | 98.4 | 3200 ± 10% | 610 | 17.27 | 2.56 | 78 | NONE |
Outline Drawing

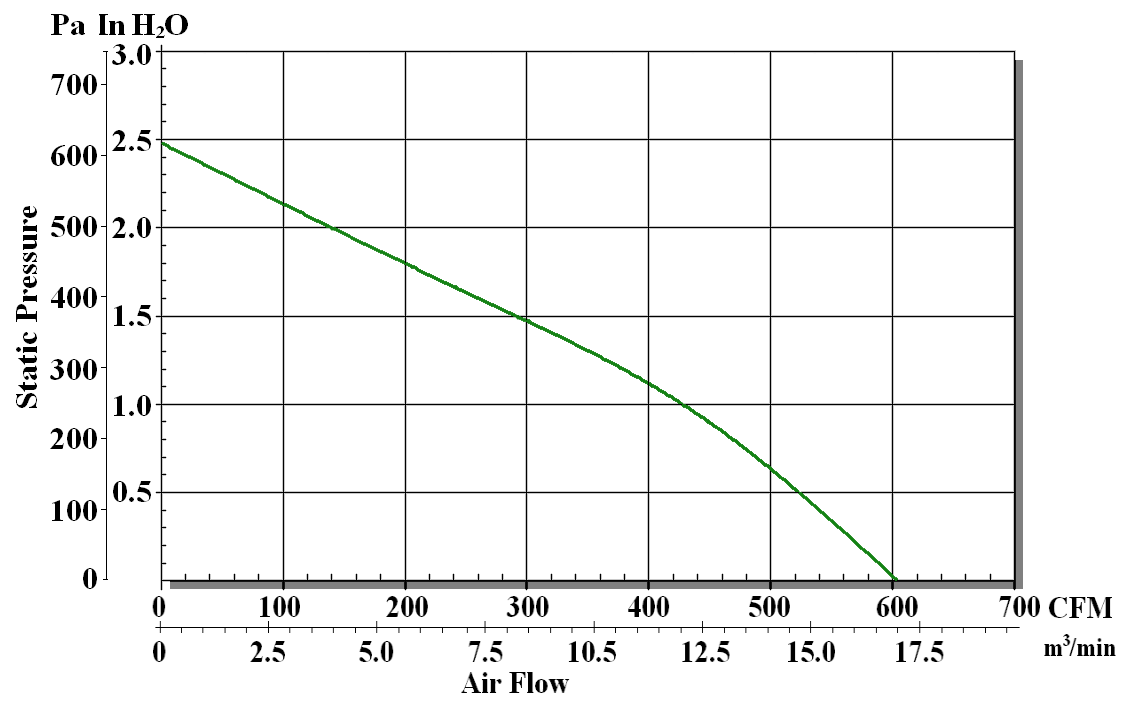

Charateristic Curve
