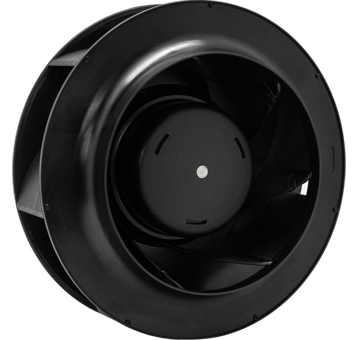

DC Centrifugal Fans
BD225-85T / 225x85mm
| Air Flow | 590 CFM |
|---|---|
| Static Pressure | 1.87 Inch-H2O |
| Noise | 74dB(A) |
| Bearing | Dual Ball Bearing, Permanently Lubricated |
| Safety | Reverse polarity and Lock Protection |
| Weight | 1220g |
| Technical Features | Control Input 0-10 VDC / PWM, Tach Output |
Specification
- Item Code
- BD225-85T
- Impeller
- Plastic PA (Polyamide Glass-fiber Reinforced)
- Motor
- DC Brushless Fan Motor
- Termination
- Lead Wire
- Voltage Range
- 16 ~ 28 VDC for 24V Type
36~ 57 VDC for 48V Type
- Insulation
- Class “B”
- Operating Temperature
- -25°C ~ +60°C
| Item Code: BD24V22585T-B7-1BA | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
|---|---|---|---|---|---|---|---|---|---|
| 24 VDC | NONE | 3.6 | 86.4 | 2600 ± 10% | 590 | 16.71 | 1.87 | 74 | NONE |
| Item Code: BD48V22585T-B7-1BA | |||||||||
|
Rated Voltage |
Frequency (Hz) |
Rated Current(A) |
Input Power(W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m3/min) |
Static Pressure (inch-H2O) |
Noise dB(A) |
Capacitor (uF) |
| 48 VDC | NONE | 1.75 | 84 | 2600 ± 10% | 590 | 16.71 | 1.87 | 74 | NONE |

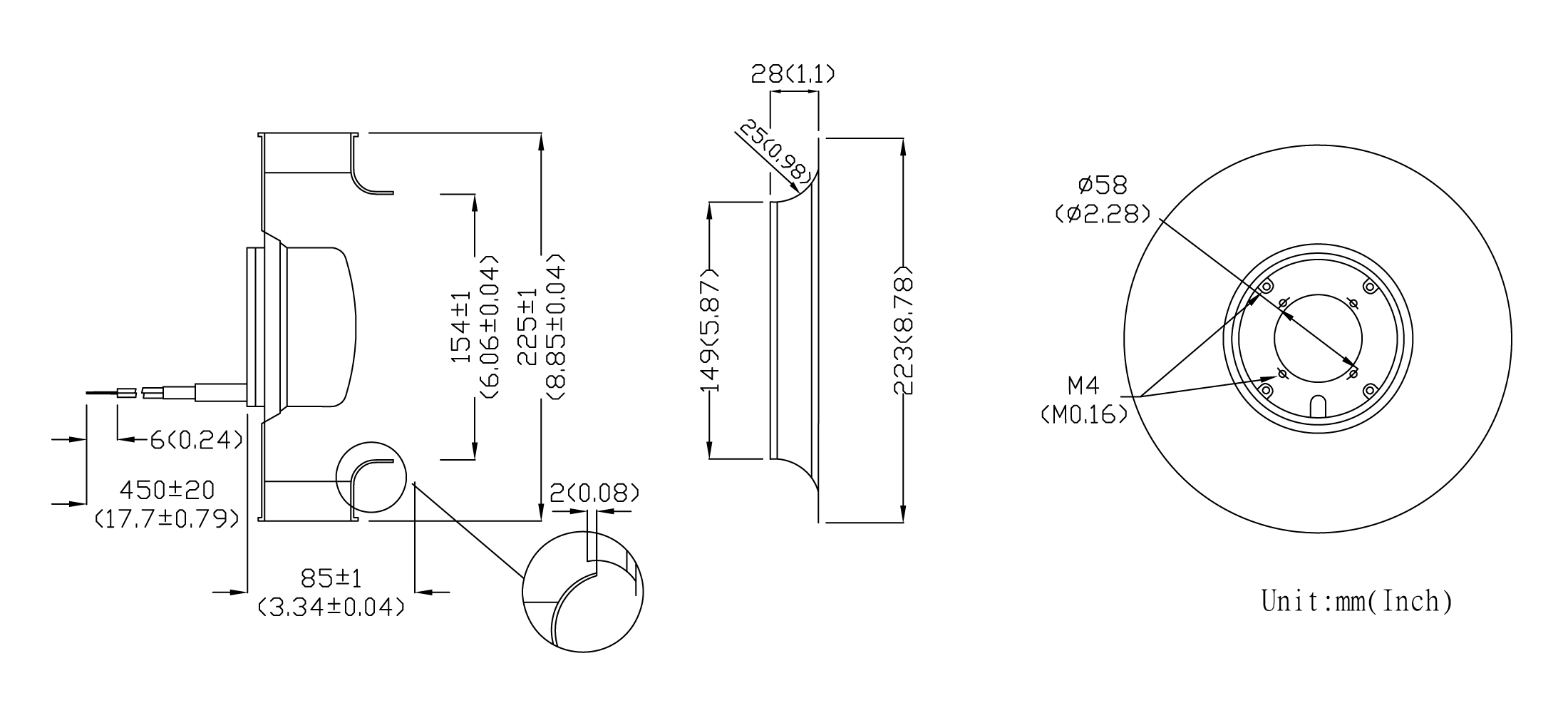

Outline Drawing

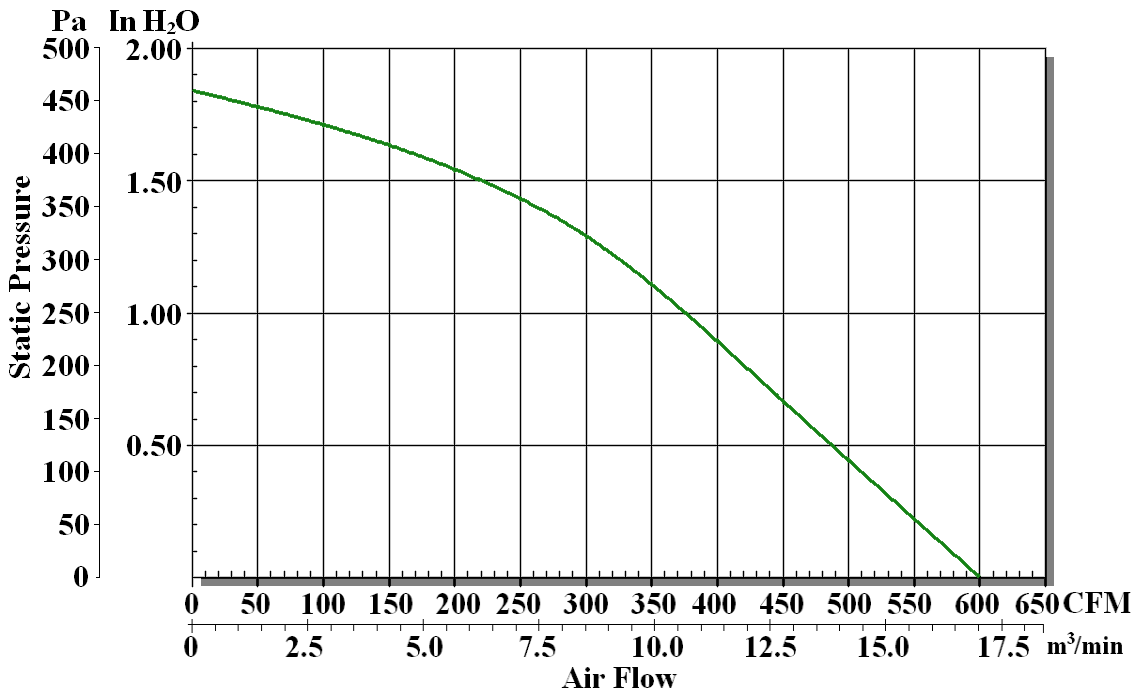

Charateristic Curve
